1.Application

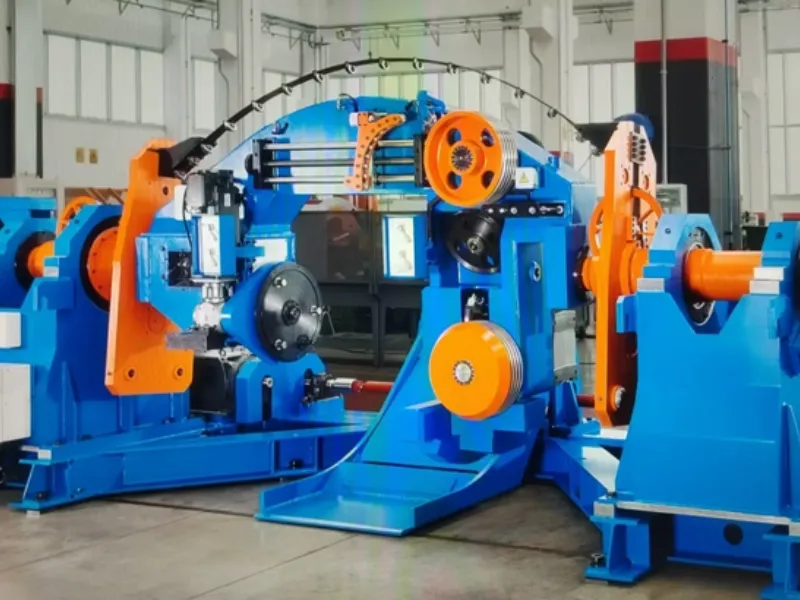

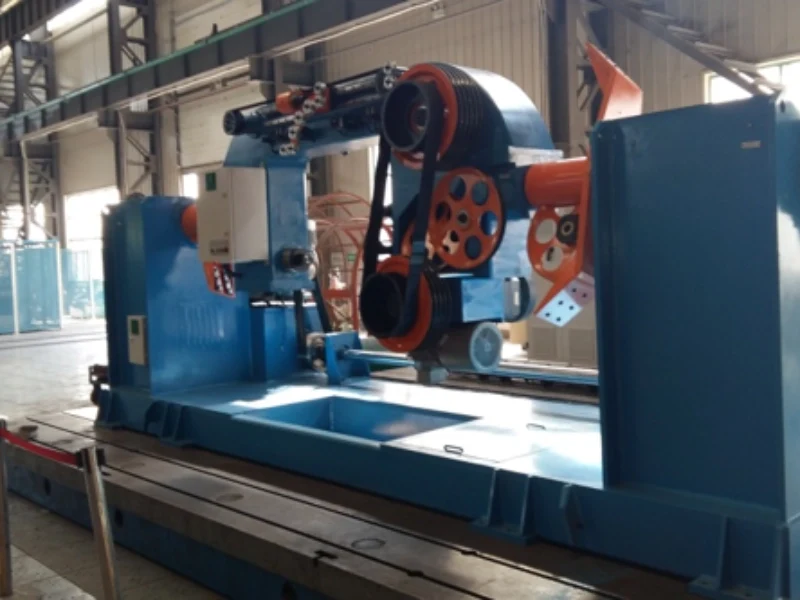

The machine is used for stranding 19-cores copper/aluminum wire/Al-alloy.

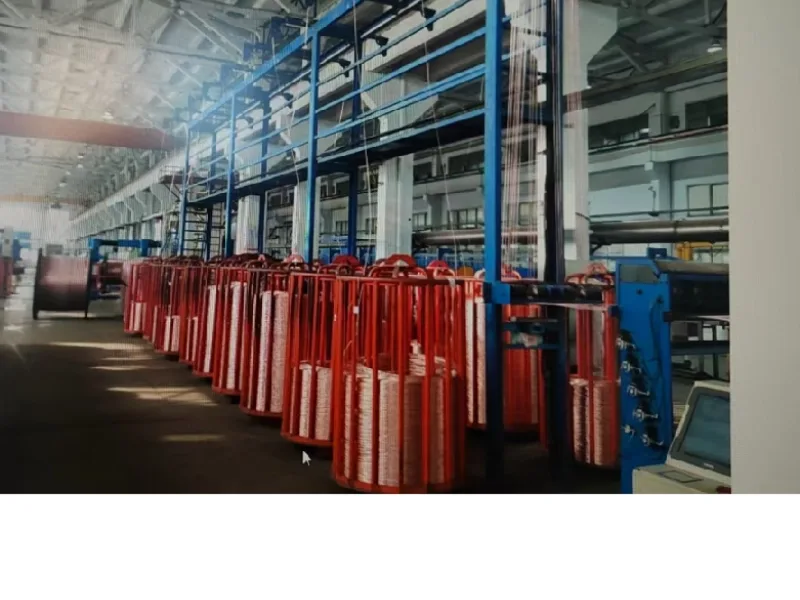

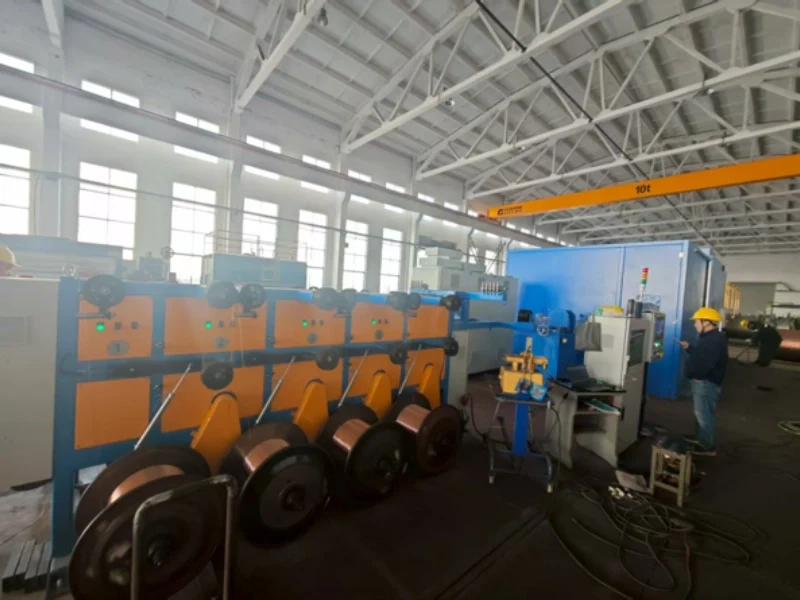

①、19 cores coil type pay off(bobbin type pay-off)

The pay-off pneumatic type swing head,with straightener unit,basket pay-off has wire break detection protection.

2.Advantage

Double-pitch stranding with bows, synchronous belt drive at both ends.
Dual-wheel traction device.

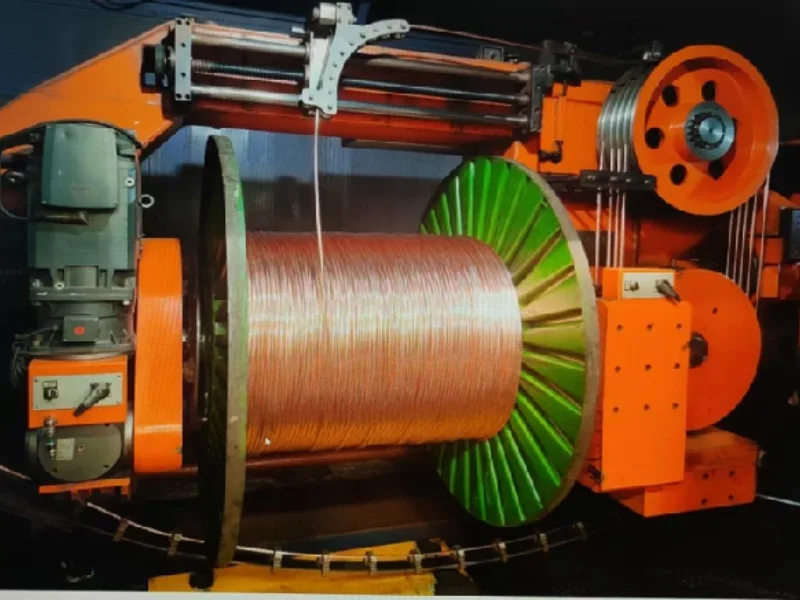

Constant tension take-up on the reel.
Carbon fiber bows with guide wheel or rotary die wire feeding.
Servo motor for cable routing. Reel pneumatically clamped and mechanically locked.

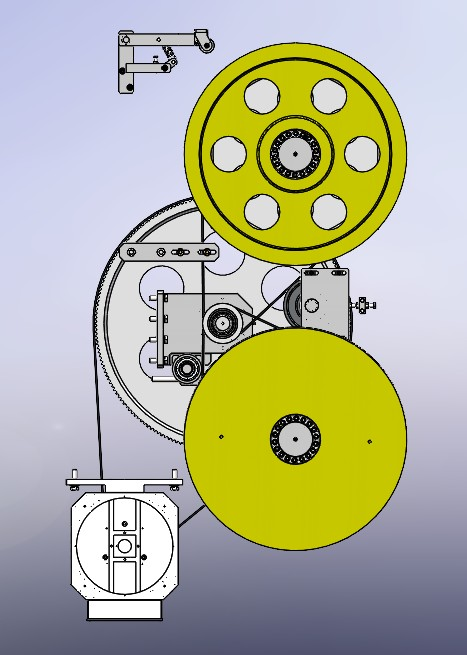

3.Capstan device of high-speed conductor stranding equipment

An innovative design for the capstan device of high-speed conductor stranding equipment utilizes independent inclined conductor pulleys, four-groove capstan pulleys, and five-groove capstan pulleys for routing. The inclined conductor pulleys feature arc grooves to ensure smooth conductor movement. The capstan pulley grooves utilize V-shaped grooves, with the conductor supporting contact at two points. This ensures conductor roundness while enabling stable, high-speed transmission and precise metering accuracy. This innovation has earned one authorized invention patent.

4.Pulling device for high-speed conductor stranding equipment

An innovative design for the traction device of high-speed conductor stranding equipment utilizes independent inclined conductor pulleys, four-groove capstan pulleys, and five-groove capstan pulleys for routing. The inclined conductor pulleys feature arc grooves to ensure smooth conductor movement. The capstan pulley grooves utilize V-shaped grooves, with the conductor supporting contact at two points. This ensures conductor roundness while enabling stable, high-speed transmission and precise metering accuracy. This innovation has earned one authorized invention patent.

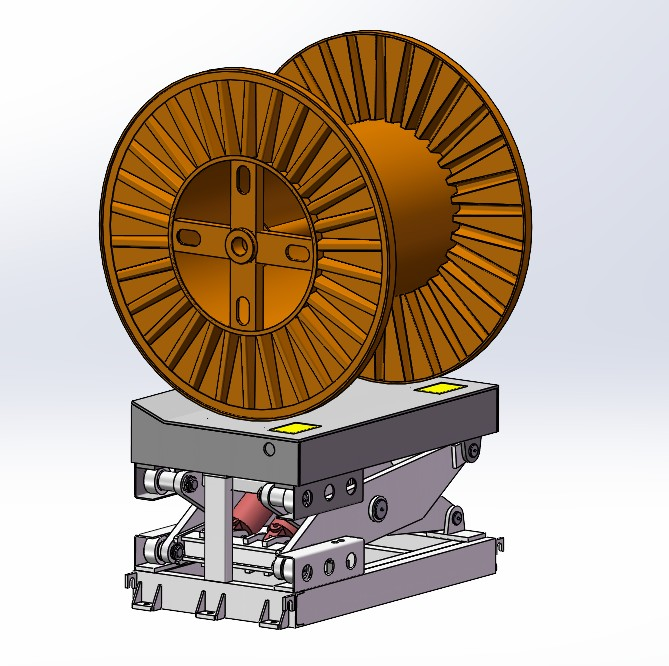

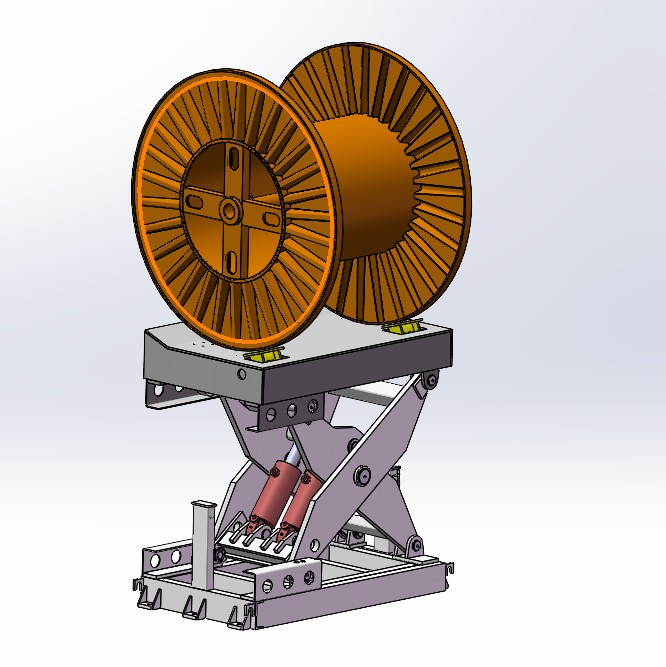

5.Hydraulic bobbin-loading device mechanism

An innovative hydraulic bobbin-loading mechanism for the twisting machine has been developed. The lifting platform and scissor lift work in tandem to achieve automatic loading and unloading of the alignment reels, eliminating the need for workers to manually lift and load the reels.

In summary, the advantages as follow:

The cage achieves high efficiency—twice that of pipe jigs and four times that of frame jigs.
The support base employs a combination of thrust ball bearings, tapered roller bearings, and cylindrical roller bearings. The thrust ball bearing enhances axial positioning accuracy, while the tapered roller bearing accommodates axial thrust generated during high-speed rotation of the swivel. The free end utilizes a cylindrical roller bearing for high radial load capacity. This combination resolves minor bidirectional oscillation of the swivel support shaft during high-speed operation, improving equipment stability at elevated speeds.
The high-load-capacity bearings in the support base are equipped with thermocouple monitoring for real-time detection of bearing temperature rise during operation. A centralized lubrication system ensures timely and metered grease supply during both equipment operation and maintenance.

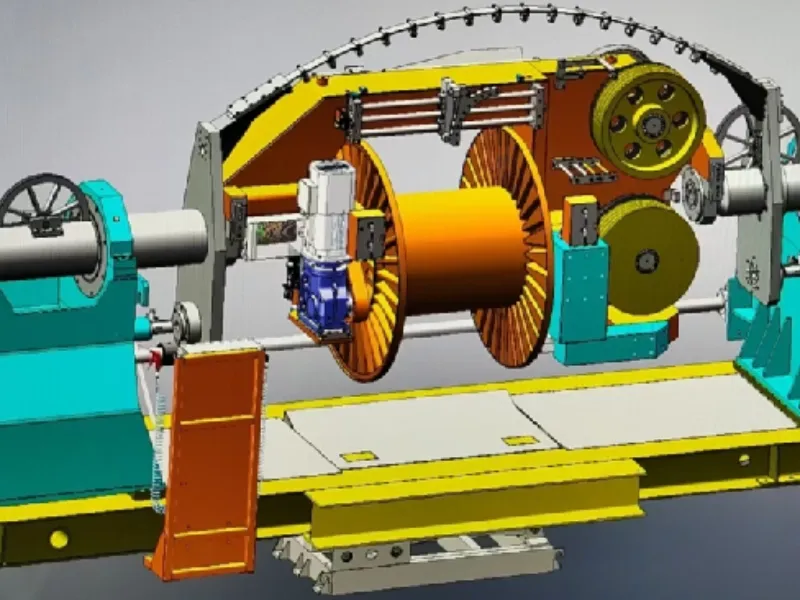

The winch plate within the winch assembly employs a new composite material (carbon fiber), reducing winch weight while increasing strength. This minimizes centrifugal forces and wind resistance during high-speed rotation, thereby lowering energy consumption. The wire guide installation within the winch assembly utilizes a rotatable mounting configuration, reducing wear on the guide and extending its service life.
The capstan device's wire-guiding system comprises an independent inclined guide pulley, a 4-groove capstan pulley, and a 5-groove traction pulley. The inclined guide pulley features an arc-shaped groove to ensure smooth wire guidance. The capstan pulley grooves employ a V-shaped design, enabling dual-point contact between the conductor and the groove. This maintains conductor roundness while ensuring high-speed, stable passage and precise meter counting accuracy.
